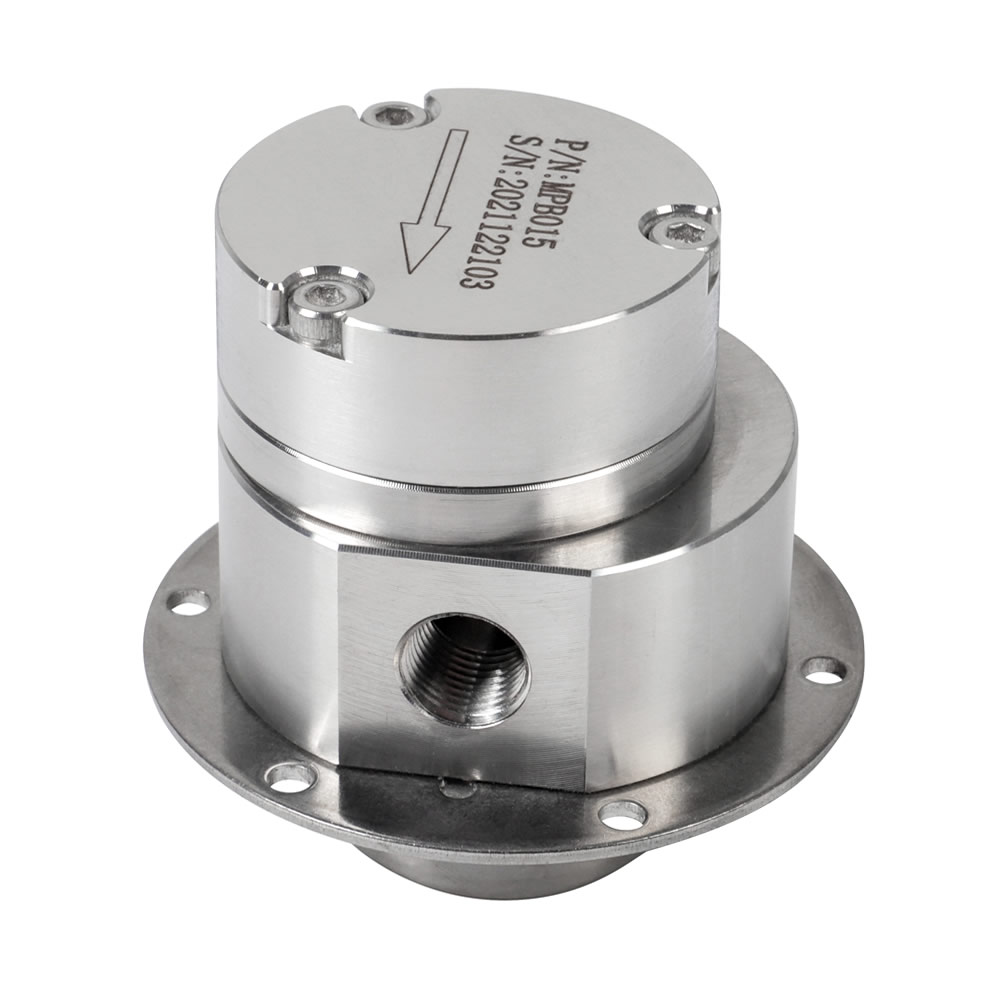

  8. MPB015 miniature magnetic gear pump 0.35ml/rev
  • Product
  • Product Details
  • Technical Parameter
  • Outline and Dimensional Drawing
MPB015 miniature magnetic gear pump 0.35ml/rev
MPB015 miniature magnetic gear pump 0.35ml/rev
MPB015 miniature magnetic gear pump 0.35ml/rev
MPB015 miniature magnetic gear pump 0.35ml/rev
MPB015 miniature magnetic gear pump 0.35ml/rev
MPB015 miniature magnetic gear pump 0.35ml/rev

MPB015 miniature magnetic gear pump 0.35ml/rev

型号： MPB015
每转排量： 0.35 ml
名义流量： 1.5 L/min

MPB015 miniature magnetic gear pump 0.35ml/rev

Select the number of specifications

Please check the product information you want!

Product Details Technical Parameter Outline and Dimensional Drawing

Model Description:

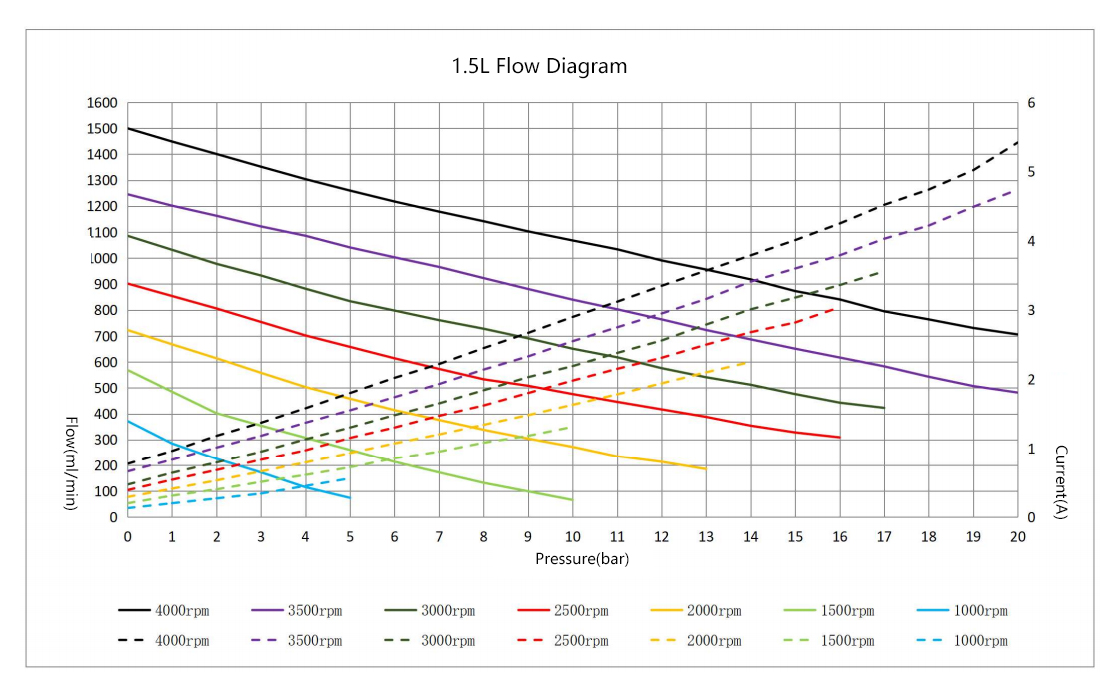

流量图：




产品特点：


  1. 泵体内接触介质部分全部采用食品级材料，可提供材质证明及相关检测报告。

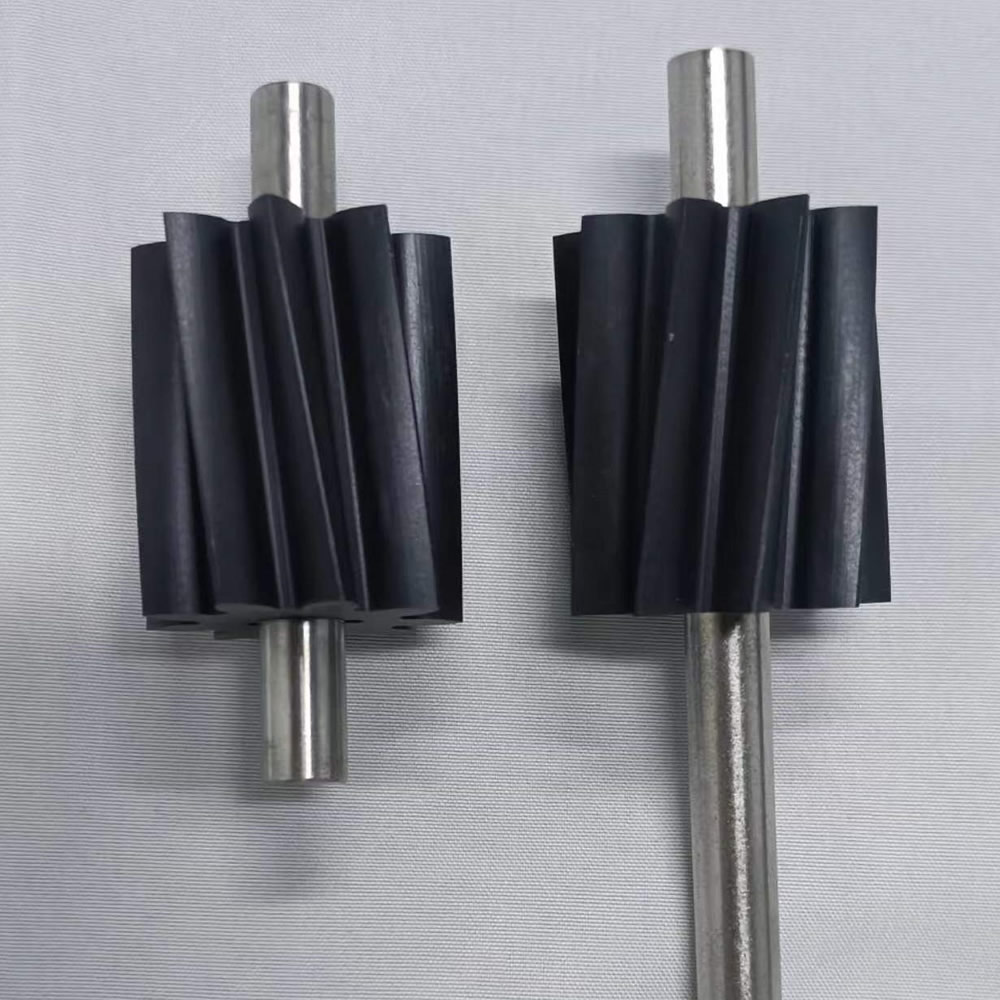

  2. 无脉动精确输送，通过精密齿轮来提供持续稳定的流体输送。
  3. 真空吸料能力强、输送压力高。可以实现液体自吸输送，摆脱传统上料工序。
  4. 无泄漏，磁力驱动和静态O型圈密封可保证泵内介质与外界完全隔离，真正实现无泄漏。



应用领域：



       随着国内微型磁力泵技术飞速发展，微型磁力泵已经广泛应用到社会各个领域，如食品饮料、化妆品、机械喷码、生命科学、化工计量等，逐渐成为工业设备不可或缺的核心零部件



详细参数


     介 质 粘 度：  0.2~3000cps

     介 质 温 度：  0℃~100℃

     进出口压差： 15Bar

     介 质 种 类：  除强酸碱外几乎所有液体

     入口过滤网： 建议400目

     入口真空度： -0.85Bar

     工 作 转 速：  500-5000 rpm

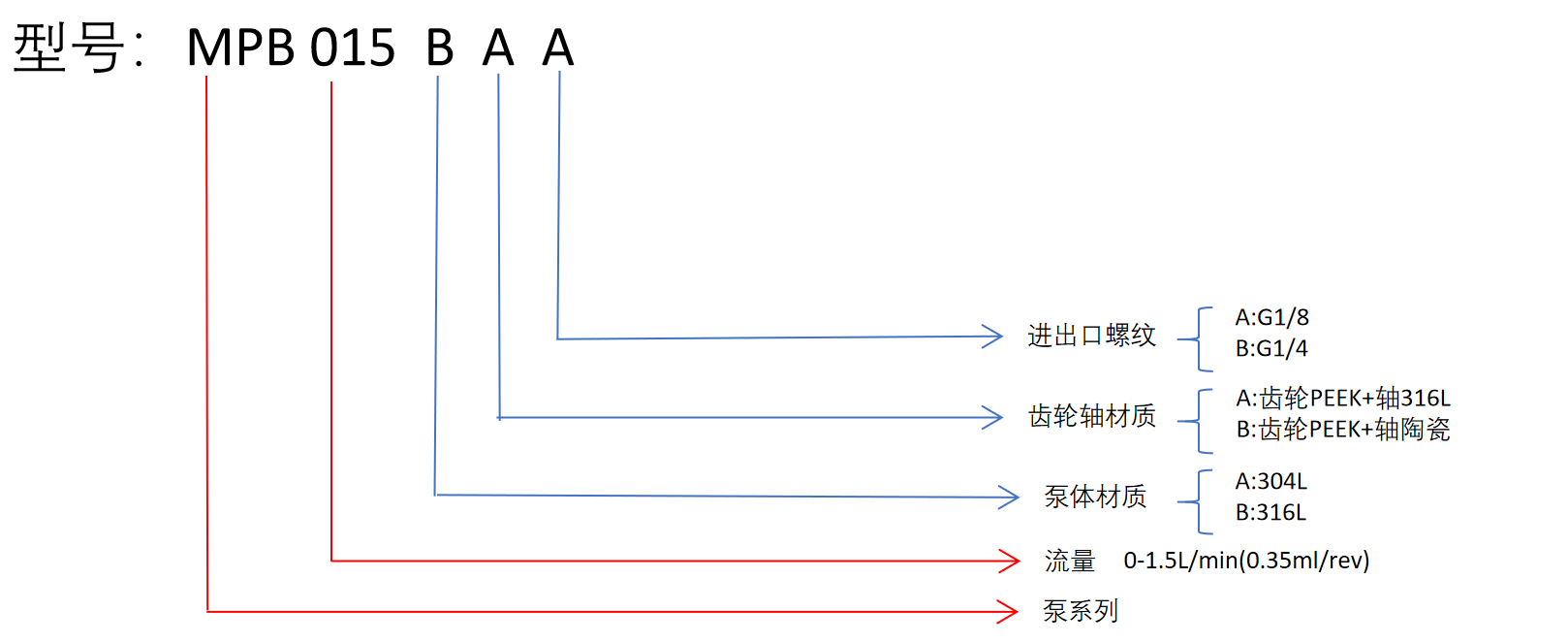

Model Description:

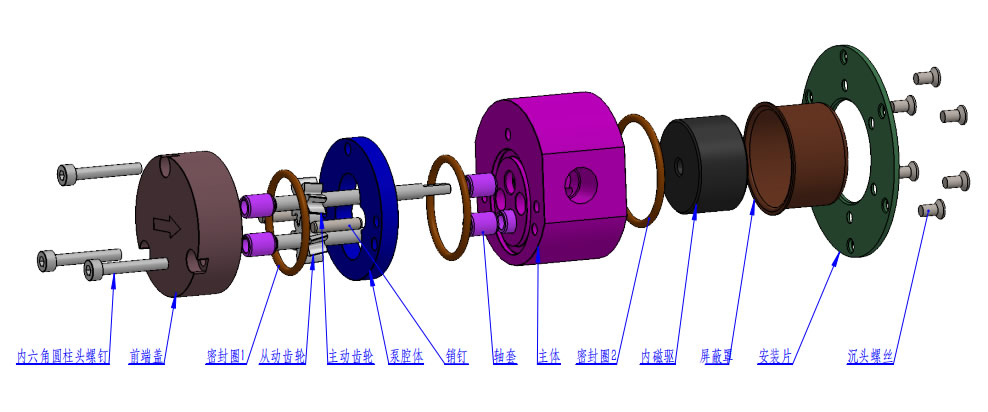

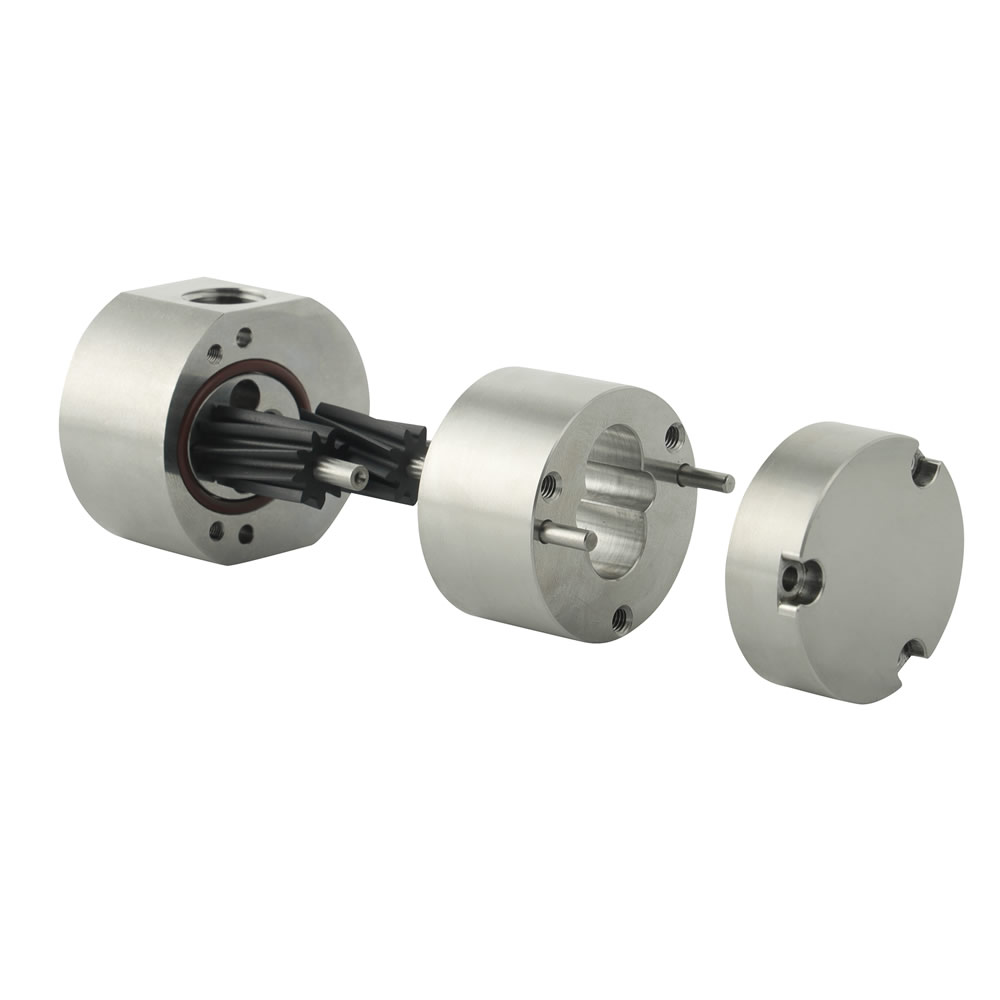

Exploded View

Installation and usage instructions


1. Remove the inlet and outlet plugs and install matching threaded joints. The inlet and outlet joints of the pump must be wrapped with raw material tape, especially at the inlet, as there will be no suction if there is air leakage.

2. The pump should be placed as close as possible to the liquid source, and the size of the inlet and outlet pipes should not be smaller than the size of the pump body joint. The pipe length should be shortened as much as possible, and if the pipe is too long, the pipe diameter should be increased.

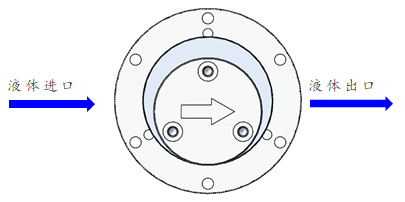

3. Install in the direction indicated by the arrow on the end cap during installation, otherwise liquid cannot be absorbed.



4. Please ensure that there is liquid inside the pump body. If the dismantling pipe is not used for a long time, please install a plug to protect the gear. Otherwise, dry transfer may cause permanent damage to the pump.

5. When using the pump for the first time, please flush the pump pipeline and install a filter in the inlet pipe. The filtration accuracy requires that the particle diameter in the liquid be less than 20 microns.

6. When the pump is working continuously, please cool it down in a timely manner.

No comment

Product Details

Model Description:


流量图：




产品特点：


  1. 泵体内接触介质部分全部采用食品级材料，可提供材质证明及相关检测报告。
  2. 无脉动精确输送，通过精密齿轮来提供持续稳定的流体输送。
  3. 真空吸料能力强、输送压力高。可以实现液体自吸输送，摆脱传统上料工序。
  4. 无泄漏，磁力驱动和静态O型圈密封可保证泵内介质与外界完全隔离，真正实现无泄漏。



应用领域：



       随着国内微型磁力泵技术飞速发展，微型磁力泵已经广泛应用到社会各个领域，如食品饮料、化妆品、机械喷码、生命科学、化工计量等，逐渐成为工业设备不可或缺的核心零部件



Technical Parameter

详细参数


     介 质 粘 度：  0.2~3000cps

     介 质 温 度：  0℃~100℃

     进出口压差： 15Bar

     介 质 种 类：  除强酸碱外几乎所有液体

     入口过滤网： 建议400目

     入口真空度： -0.85Bar

     工 作 转 速：  500-5000 rpm

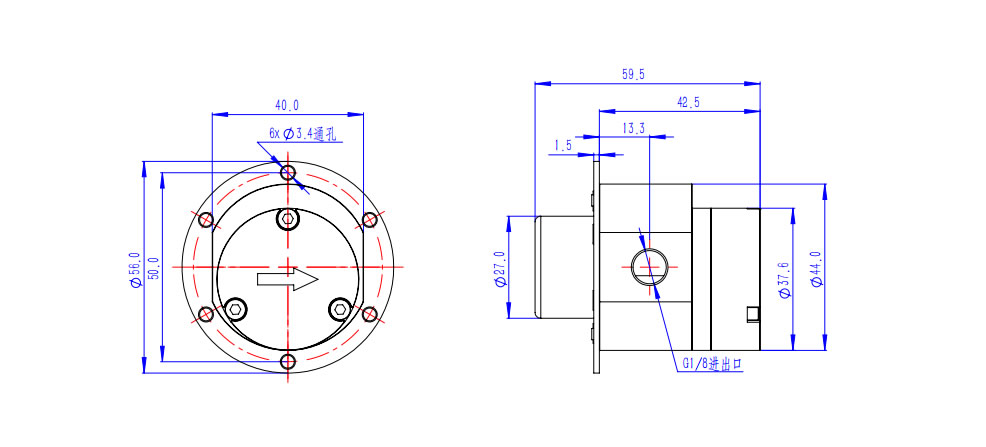

Outline and Dimensional Drawing

Model Description:

Exploded View

Installation and usage instructions


1. Remove the inlet and outlet plugs and install matching threaded joints. The inlet and outlet joints of the pump must be wrapped with raw material tape, especially at the inlet, as there will be no suction if there is air leakage.

2. The pump should be placed as close as possible to the liquid source, and the size of the inlet and outlet pipes should not be smaller than the size of the pump body joint. The pipe length should be shortened as much as possible, and if the pipe is too long, the pipe diameter should be increased.

3. Install in the direction indicated by the arrow on the end cap during installation, otherwise liquid cannot be absorbed.



4. Please ensure that there is liquid inside the pump body. If the dismantling pipe is not used for a long time, please install a plug to protect the gear. Otherwise, dry transfer may cause permanent damage to the pump.

5. When using the pump for the first time, please flush the pump pipeline and install a filter in the inlet pipe. The filtration accuracy requires that the particle diameter in the liquid be less than 20 microns.

6. When the pump is working continuously, please cool it down in a timely manner.

MPB015 miniature magnetic gear pump 0.35ml/rev
型号： MPB015
每转排量： 0.35 ml
名义流量： 1.5 L/min
