| Model Description |
| MPB | 100 | B | A | B | / | D | 24V | 550W |
| Pump series | internet traffic | Pump body material | Gear shaft material | Import and export threads | / | electrical machinery | voltage | power |
MPB： Rubber O-ring seal MPC: PTFE gasket seal MPD： Direct drive (non magnetic) | 100: indicates a flow rate of 0-10L/min | A:304 B:316L C:PPS D: Hastelloy alloy E: titanium alloy | A: Gear PEEK+shaft 316L B: Gear PEEK+shaft ceramic C: Gear PEEK+shaft tungsten steel D: Gear PEEK+shaft titanium alloy E: Gear 316L+shaft 316L | A:G1/8 B:G1/4 C:3/8 D:1/2 E: other

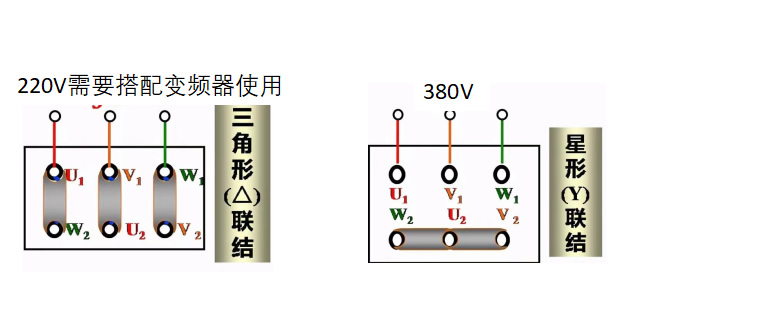

| / | A: BL DC brushless: B: DC DC brushed C: SM stepper motor D: SVCA servo motor E: ACIM three-phase asynchronous motor F: ACIMB - Three phase asynchronous explosion-proof motor G: BLB DC brushless explosion-proof | 12V
24V
48V
220V
380V | 30W/40W/60W /70W /80W/100W/110W/150W/200W/250W/300W/370W/400W/550W/750W/1000W |
Product Features
1. Non pulsating precise delivery, providing continuous and stable fluid delivery through gears.
2. Strong vacuum suction capacity, high conveying pressure, and stability can achieve medium to high pressure conveying of low viscosity liquids.
3. No leakage, magnetic drive and static O-ring sealing can ensure the isolation of the medium inside the pump from the outside, achieving no leakage.
Installation and usage instructions
1. Remove the inlet and outlet plugs and install matching threaded joints. The inlet and outlet joints of the pump must be wrapped with raw material tape, especially at the inlet, as there will be no suction if there is air leakage.
2. The pump should be placed as close as possible to the liquid source, and the size of the inlet and outlet pipes should not be smaller than the size of the pump body joint. The pipe length should be shortened as much as possible, and if the pipe is too long, the pipe diameter should be increased.
3. Install in the direction indicated by the arrow on the end cap during installation, otherwise liquid cannot be absorbed.
4. Please ensure that there is liquid inside the pump body. If the dismantling pipe is not used for a long time, please install a plug to protect the gear. Otherwise, dry transfer may cause permanent damage to the pump.
5. When using the pump for the first time, please flush the pump pipeline and install a filter in the inlet pipe. The filtration accuracy requires that the particle diameter in the liquid be less than 20 microns.
6. When the pump is working continuously, please cool it down in a timely manner.
Application Area
With the rapid development of domestic micro magnetic pump technology, micro magnetic pumps have been widely used in various fields of society, such as food and beverage, cosmetics, mechanical coding, life sciences, chemical metrology, etc., gradually becoming an indispensable core component of industrial equipment
